Dual Contouring¶

Dual contouring is a dual extraction method: it places one vertex inside each cell the surface crosses and connects the vertices of neighboring cells, and it puts each vertex on the sharp edge or corner if the cell contains one. The default variant finds that point from the surface normals at the edge crossings. A second variant finds it from the signed distance samples alone.

Basic Usage¶

vertices, faces = isoext.dual_contouring(grid, level=0.0)

grid: A UniformGrid or SparseGrid with values set
level: The iso-value to extract (default: 0.0)
intersection: Optional precomputed edge crossings from get_intersection, with or without normals; computed automatically when omitted
method: "ju" (default) or "carrera", described below

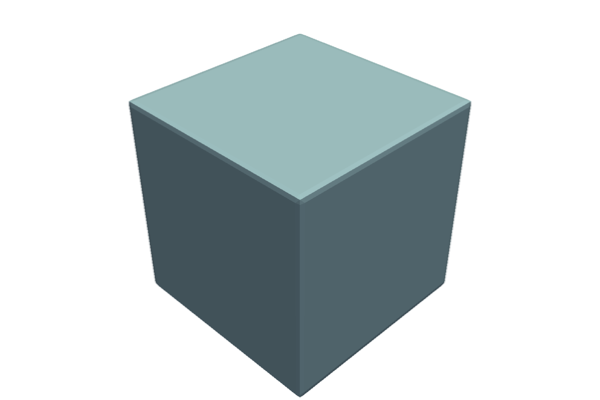

Called like this, the edge crossings and normals are estimated from the grid values, which is enough for smooth surfaces. A cube rotated so that none of its edges align with the grid, sampled on 32 cells per axis, comes out with rounded edges:

import torch
import isoext
from isoext.sdf import CuboidSDF, RotationOp, get_sdf_normal, project_to_surface
from isoext import viewer

cube = RotationOp(sdf=CuboidSDF(size=[1.0, 1.0, 1.0]), axis=[1, 1, 0], angle=30)
grid = isoext.UniformGrid([33, 33, 33])
grid.set_values(cube(grid.get_points()))

vertices, faces = isoext.dual_contouring(grid)

print(f"Vertices: {vertices.shape}")
print(f"Faces: {faces.shape}")
print(f"max vertex error: {cube(vertices).abs().max():.4f} (cell size {2 / 32:.4f})")

viewer.embed(vertices, faces, color="lightblue", flat_shading=True)

Vertices: torch.Size([2146, 3])
Faces: torch.Size([4292, 3])
max vertex error: 0.0184 (cell size 0.0625)

How It Works¶

Like surface nets, dual contouring puts one vertex inside each crossed cell and one quad around each crossed edge (see Surface Nets). The difference is where the vertex goes. Every edge crossing together with its surface normal defines a tangent plane, and the vertex is placed to minimize the total squared distance to all of the cell’s planes, a least-squares problem known as the QEF (Ju et al. [2002]). If the cell contains a sharp corner, the planes are the corner’s faces and their intersection point is the corner itself.

The cell below contains the corner of a tilted box. The gold dots are the crossings, the arrows their normals, and each translucent square is a piece of the tangent plane it defines, drawn large enough to reach their common intersection. The centroid of the crossings (green) sits away from the feature; the QEF solution (red) is the corner. When the crossings do not pin down all three axes, on flat faces or straight creases, the QEF is degenerate and the solver regularizes it toward the centroid.

centroid: [-0.6, -0.59, -0.64]
qef:      [0.1, 0.15, 0.2]

Custom Normals for Sharp Features¶

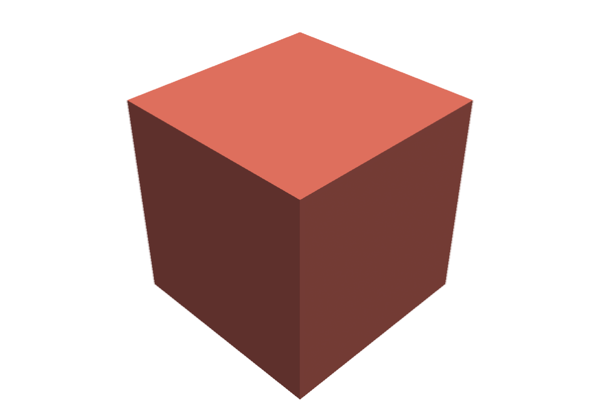

The vertex placement is only as good as the normals. Estimated from grid values they are smeared near sharp features; computed from the SDF gradient they are exact. To supply your own, get the edge crossings with get_intersection, attach normals to them, and pass the result in:

intersection = isoext.get_intersection(grid)
points = intersection.get_points()
intersection.set_normals(get_sdf_normal(cube, points))

vertices, faces = isoext.dual_contouring(grid, intersection=intersection)
print(f"max vertex error: {cube(vertices).abs().max():.4f}")
viewer.embed(vertices, faces, color="salmon", flat_shading=True)

max vertex error: 0.0097

Refined Points and Unclamped Vertices¶

Two more steps make the edges exact:

project_to_surface moves the intersection points from their linear interpolation estimate onto the actual surface.
clamp=False lets a vertex leave its cell to sit on a sharp feature. By default vertices are kept inside their cells, which is safer but rounds edges whose feature line passes through a neighboring cell. Unclamped vertices can produce self-intersections on noisy data.

The refinement works with any field that can be evaluated at arbitrary points, including neural networks. Disabling the clamp is another matter: it is only safe for exact fields like analytic SDFs. On approximate fields, such as distance estimators or neural networks, noise in the points and normals can throw unclamped vertices far from the surface, producing what Schaefer and Warren [2002] call spikes. For those fields, and for purely sampled volumes, keep the default clamp.

With the refinement, the tangent planes pass through the exact surface and the edges come out clean:

points = project_to_surface(cube, intersection.get_points())
intersection.set_points(points)
intersection.set_normals(get_sdf_normal(cube, points))

vertices, faces = isoext.dual_contouring(grid, intersection=intersection, clamp=False)
print(f"max vertex error: {cube(vertices).abs().max():.4f}")
viewer.embed(vertices, faces, color="gold", flat_shading=True)

max vertex error: 0.0002

Sharp Features Without Normals¶

Exact normals need a field you can evaluate at any point. When all you have is the grid of signed distance samples, from a scan, a precomputed distance field or a swept volume, method="carrera" recovers the sharp features from those samples alone (Carrera et al. [2026]). The same cube, with nothing but the grid values:

vertices, faces = isoext.dual_contouring(grid, method="carrera")
print(f"max vertex error: {cube(vertices).abs().max():.4f}")
viewer.embed(vertices, faces, color="lightblue", flat_shading=True)

max vertex error: 0.0054

The idea: every sample says how far the surface is from its grid point, so every sample is a sphere the surface must touch without cutting into it. The cell below is mostly filled by a corner of the cube. Its six outside samples are drawn as spheres with their distance as radius, and the true surface (grey) rests against every one of them. The centroid of the edge crossings (green), where surface nets and this method start, sits away from the corner (red); any surface through it would cut into the spheres around the corner. The method moves each vertex until a small local mesh around it is tangent to the spheres assigned to its cell, hands the spheres out again on the moved mesh, and repeats, 100 times by default. Sharp corners fall out of this, because only the corner touches all of its spheres at once.

This costs time: a fraction of a second on grids of a hundred cells per axis and seconds at 512, where the default variant takes milliseconds (see Performance). The samples must be true signed distances; for densities or occupancies use the default variant, Surface Nets or Dual Marching Cubes. Like the default variant, it is sensitive to noise in the samples.

outer_iters and inner_iters (100 each) trade accuracy for time, band (3 cell diagonals) selects the samples used, and the remaining options keep the defaults of the authors’ code. Where that code differs from the paper, the code is followed, since it produced the published results: the Hermite normal blend, the radius weighting of the sphere terms, and qef_assignment, which hands out the first samples on the QEF mesh. Each was more accurate in our comparison against the reference implementation, which also showed that the band loses nothing against the code’s random batches of far samples. An intersection with normals seeds the Hermite data in place of the estimate from the grid values.

References¶

[1]

Tao Ju, Frank Losasso, Scott Schaefer, and Joe Warren. Dual contouring of hermite data. In Proceedings of the 29th Annual Conference on Computer Graphics and Interactive Techniques (SIGGRAPH '02), 339–346. 2002. doi:10.1145/566570.566586.

[2]

Scott Schaefer and Joe Warren. Dual contouring: “the secret sauce”. Technical Report TR 02-408, Rice University, 2002. URL: https://www.cs.rice.edu/~jwarren/papers/techreport02408.pdf.

[3]

Xiana Carrera, Ningna Wang, Christopher Batty, Oded Stein, and Silvia Sellán. Dual contouring of signed distance data. In Proceedings of the Special Interest Group on Computer Graphics and Interactive Techniques Conference Conference Papers (SIGGRAPH '26). 2026. doi:10.1145/3799902.3811116.
