SDF Utilities¶

isoext.sdf is a small toolbox of signed distance functions for testing and demos. Nothing in the library requires it: extraction only sees the values you put on the grid, however you compute them. Working with Grids shows examples with raw PyTorch.

import torch
import isoext
from isoext.sdf import *
from isoext import viewer

grid = isoext.UniformGrid([128, 128, 128])

Meshes¶

TriangleMeshSDF turns a triangle mesh into a signed distance function, so a mesh can be sampled into a grid, edited or combined like any other field, and extracted again.

TriangleMeshSDF(vertices, faces, signed=True)

isoext.assets.load_mesh downloads a few well-known test meshes on first use and caches them:

"armadillo" (Krishnamurthy and Levoy [1996]), "bunny" (Turk and Levoy [1994]) and "dragon" (Curless and Levoy [1996]), courtesy of the Stanford Computer Graphics Laboratory, for research use
"spot" from Crane [2012], public domain

The armadillo, sampled on a 256 cell grid and extracted again:

vertices, faces = isoext.assets.load_mesh("armadillo")
armadillo = TriangleMeshSDF(vertices, faces)

fine = isoext.UniformGrid([256, 256, 256])
fine.set_values(armadillo(fine.get_points()))
v, f = isoext.dual_marching_cubes(fine)
print(f"{len(faces):,} mesh triangles in, {len(f):,} out")
viewer.embed(v, f, color="lightsteelblue")

345,944 mesh triangles in, 204,664 out

The distance is the distance to the closest triangle, found through a bounding volume hierarchy on the GPU (Ericson [2005]; Jones et al. [2006] survey the approaches). The sign is the generalized winding number (Jacobson et al. [2013]), evaluated with the tree-based approximation of Barill et al. [2018], so meshes with holes like the bunny and the dragon still get a sensible sign. sign="parity" counts ray crossings instead (Nooruddin and Turk [2003]), which needs a closed mesh.

The gradient is the direction away from the closest point, so get_sdf_normal and project_to_surface work on a mesh SDF, and closest_points returns the closest point on the mesh and its triangle directly:

p = torch.tensor([[0.0, 0.0, 0.9], [0.5, 0.5, 0.5]], device="cuda")
q, face = armadillo.closest_points(p)
print("distances:", [round(d, 4) for d in armadillo(p).tolist()])
print("closest points:", [[round(x, 4) for x in row] for row in q.tolist()])
print("faces:", face.tolist())

distances: [0.1756, 0.1375]
closest points: [[-0.01, -0.0093, 0.725], [0.6087, 0.4526, 0.5696]]
faces: [281187, 12731]

Primitives¶

SphereSDF¶

SphereSDF(radius: float)

grid = isoext.UniformGrid([128, 128, 128])

sphere = SphereSDF(radius=0.7)
grid.set_values(sphere(grid.get_points()))
v, f = isoext.marching_cubes(grid)
viewer.embed(v, f)

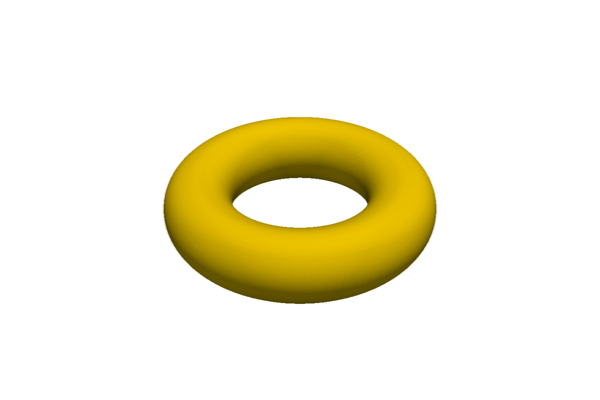

TorusSDF¶

TorusSDF(R: float, r: float)  # R=major radius, r=tube radius

torus = TorusSDF(R=0.6, r=0.2)
grid.set_values(torus(grid.get_points()))
v, f = isoext.marching_cubes(grid)
viewer.embed(v, f, color="gold")

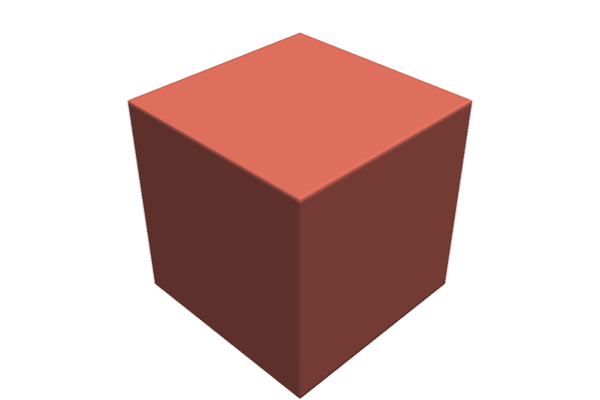

CuboidSDF¶

CuboidSDF(size: list[float])  # Full size in [x, y, z]

cube = CuboidSDF(size=[1.0, 1.0, 1.0])
grid.set_values(cube(grid.get_points()))
v, f = isoext.marching_cubes(grid)
viewer.embed(v, f, color="salmon")

MandelbulbSDF¶

A distance estimator for the Mandelbulb fractal of White and Nylander [2009]. The values approximate the distance to the surface rather than being an exact SDF; fewer iterations give a smoother shape.

bulb = MandelbulbSDF(iterations=6)

# The bulb needs slightly larger bounds than the shared grid above
bulb_grid = isoext.UniformGrid([128, 128, 128], aabb_min=[-1.2, -1.2, -1.2], aabb_max=[1.2, 1.2, 1.2])
bulb_grid.set_values(bulb(bulb_grid.get_points()))
v, f = isoext.marching_cubes(bulb_grid)
viewer.embed(v, f, color="coral")

CSG Operations¶

Combine shapes using Constructive Solid Geometry:

Operation	Description
`UnionOp([...])`	Combine shapes (min of SDFs)
`IntersectionOp([...])`	Keep overlap (max of SDFs)
`NegationOp(sdf)`	Invert inside/outside
`SmoothUnionOp([...], k)`	Smooth blend with radius k

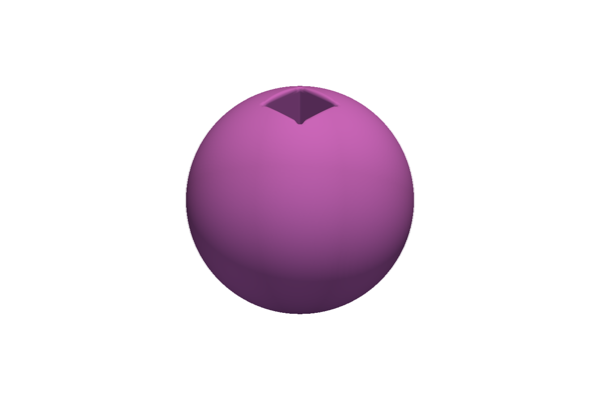

# Sphere with a hole drilled through it
sphere = SphereSDF(radius=0.7)
hole = CuboidSDF(size=[0.3, 0.3, 2.0])
drilled = IntersectionOp([sphere, NegationOp(hole)])

grid.set_values(drilled(grid.get_points()))
v, f = isoext.marching_cubes(grid)
viewer.embed(v, f, color="orchid")

Transformations¶

Transform	Description
`TranslationOp(sdf, offset)`	Move by `[x, y, z]`
`RotationOp(sdf, axis, angle)`	Rotate around axis (degrees by default)

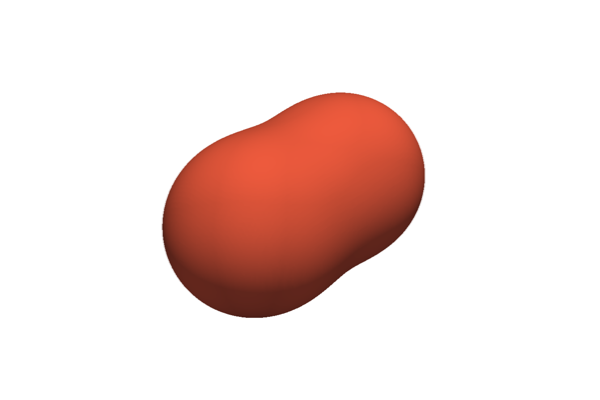

# Two spheres with smooth blending
s1 = TranslationOp(SphereSDF(radius=0.4), offset=[-0.3, 0, 0])
s2 = TranslationOp(SphereSDF(radius=0.4), offset=[0.3, 0, 0])
blended = SmoothUnionOp([s1, s2], k=0.15)

grid.set_values(blended(grid.get_points()))
v, f = isoext.marching_cubes(grid)
viewer.embed(v, f, color="tomato")
